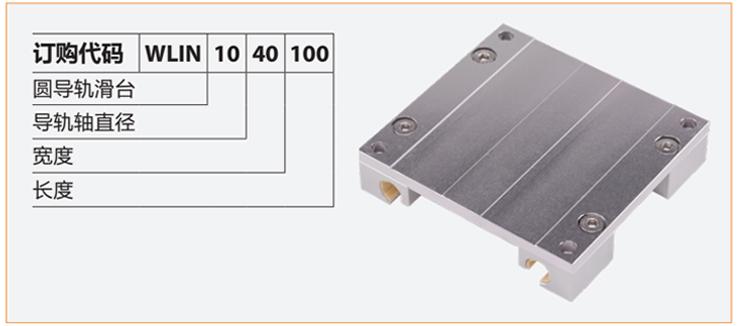

| 产品代码 | 产品代码 对应导轨 |

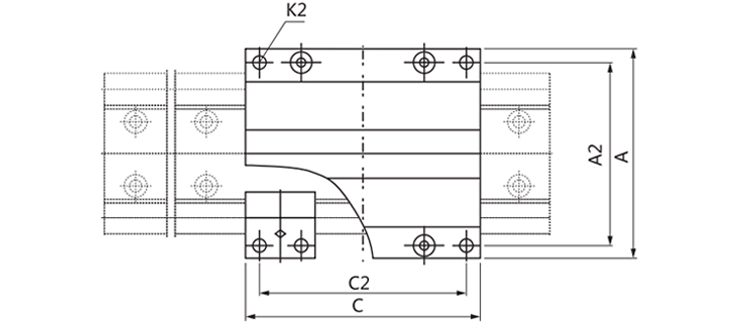

重量 [kg] | A 宽度 |
C 长度 |
A2 | C2 | K2 | H2 ±0.17 |
最大静态载荷 | ||||
| Coy [N] |
Coz [N] |
Mox [Nm] |
Moy [Nm] |
Moz [Nm] |
|||||||||
| WLIN-10-40-100 | WR02-10-40 | 0.29 | 73 | 100 | 60 | 87 | M6 | 24 | 4,800 | 2,400 | 96 | 170 | 170 |
| WLIN-10-40-150 | WR02-10-40 | 0.34 | 73 | 150 | 60 | 137 | M6 | 24 | 4,800 | 2,400 | 96 | 290 | 290 |
| WLIN-10-40-200 | WR02-10-40 | 0.4 | 73 | 200 | 60 | 187 | M6 | 24 | 4,800 | 2,400 | 96 | 410 | 410 |
| WLIN-10-80-100 | WR02-10-80 | 0.34 | 107 | 100 | 94 | 87 | M6 | 24 | 4,800 | 2,400 | 178 | 170 | 170 |
| WLIN-10-80-150 | WR02-10-80 | 0.42 | 107 | 150 | 94 | 137 | M6 | 24 | 4,800 | 2,400 | 178 | 290 | 290 |
| WLIN-10-80-200 | WR02-10-80 | 0.5 | 107 | 200 | 94 | 187 | M6 | 24 | 4,800 | 2,400 | 178 | 410 | 410 |
| WLIN-16-60-100 | WR02-16-60 | 0.71 | 104 | 100 | 86 | 82 | M8 | 35 | 8,400 | 4,200 | 240 | 270 | 270 |
| WLIN-16-60-150 | WR02-16-60 | 0.84 | 104 | 150 | 86 | 132 | M8 | 35 | 8,400 | 4,200 | 240 | 480 | 480 |
| WLIN-16-60-200 | WR02-16-60 | 0.97 | 104 | 200 | 86 | 182 | M8 | 35 | 8,400 | 4,200 | 240 | 690 | 690 |
| WLIN-20-80-150 | WR02-20-80 | 1.2 | 134 | 150 | 116 | 132 | M8 | 44 | 12,800 | 6,400 | 525 | 670 | 670 |
| WLIN-20-80-200 | WR02-20-80 | 1.3 | 134 | 200 | 116 | 182 | M8 | 44 | 12,800 | 6,400 | 525 | 990 | 990 |
| WLIN-20-80-250 | WR02-20-80 | 1.5 | 134 | 250 | 116 | 232 | M8 | 44 | 12,800 | 6,400 | 525 | 1,250 | 1,250 |
