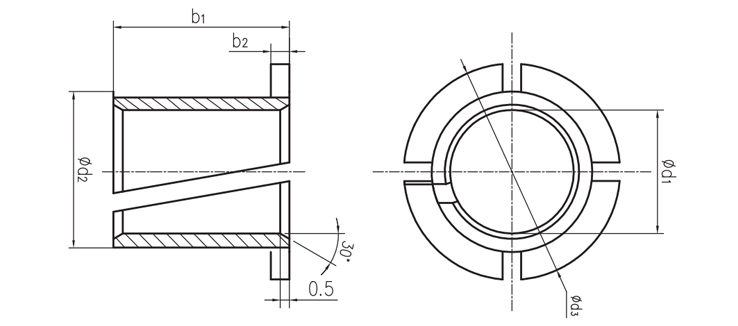

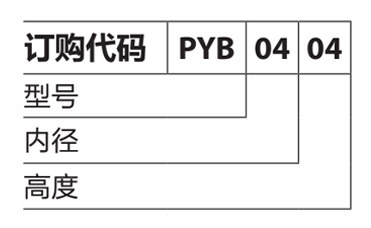

| 订购编码 | d1 [mm] |
公差 [mm] |
d2 [mm] |
d3±0.40 [mm] |
b1[-0.40] [mm] |
b2[-0.13] [mm] |
| PYB-04-04 | 4 | +0.025/+0.075 | 5.2 | 7.0 | 4 | 0.6 |
| PYB-05-05 | 5 | +0.025/+0.075 | 6.2 | 8.0 | 5 | 0.6 |
| PYB-06-06 | 6 | +0.025/+0.075 | 7.2 | 9.5 | 6 | 0.6 |
| PYB-08-08 | 8 | +0.025/+0.075 | 9.6 | 12.0 | 8 | 0.8 |
| PYB-10-10 | 10 | +0.025/+0.075 | 11.6 | 15.0 | 10 | 0.8 |
| PYB-12-12 | 12 | +0.025/+0.075 | 13.6 | 18.0 | 12 | 0.8 |
| PYB-14-14 | 14 | +0.025/+0.075 | 15.6 | 21.0 | 14 | 0.8 |
| PYB-16-16 | 16 | +0.025/+0.075 | 17.6 | 24.0 | 16 | 0.8 |
| PYB-20-20 | 20 | +0.025/+0.075 | 21.6 | 30.0 | 20 | 0.8 |
| PYB-25-25 | 25 | +0.025/+0.075 | 27.4 | 37.5 | 25 | 1.2 |
