| 产品代码 | 尺寸 公称直径 | 公差 轴承内圈直径 | F最大值
动态 P=5MPa [N] |
F最大值
静态 P=35MPa [N] |
重量 [g] |
| LIN-12RHL-10 | 10 | +0.030 +0.088 | 1,300 | 9,100 | 90 |
| LIN-12RHL-12 | 12 | +0.030 +0.088 | 1,600 | 11,760 | 102 |
| LIN-12RHL-16 | 16 | +0.030 +0.088 | 2,400 | 16,800 | 182 |
| LIN-12RHL-20 | 20 | +0.030 +0.091 | 3,000 | 21,000 | 247 |
| LIN-12RHL-25 | 25 | +0.030 +0.091 | 5,000 | 35,000 | 525 |
| LIN-12RHL-30 | 30 | +0.040 +0.110 | 7,500 | 52,500 | 645 |

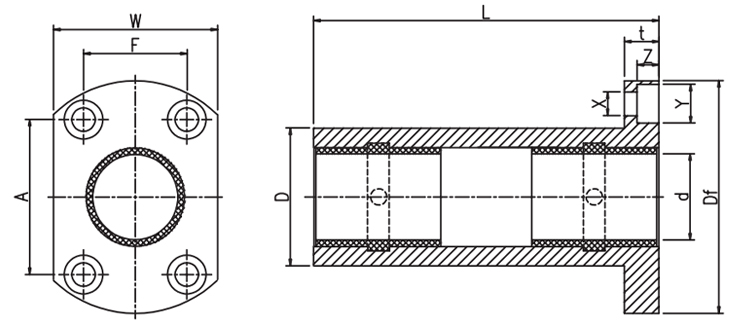

| 产品代码 | d | D | Df | L | W |
| LIN-12RHL-10 | 10 | 19 | 40 | 55 | 25 |
| LIN-12RHL-12 | 12 | 21 | 42 | 57 | 27 |
| LIN-12RHL-16 | 16 | 28 | 48 | 70 | 34 |
| LIN-12RHL-20 | 20 | 32 | 54 | 80 | 38 |
| LIN-12RHL-25 | 25 | 40 | 62 | 112 | 46 |
| LIN-12RHL-30 | 30 | 45 | 74 | 125 | 51 |
