| 产品代码 | 轴 ∅ [mm] |
座孔 H7 [mm] |
公差 轴承内圈直径 | F最大值
动态 P=5MPa [N] |
F最大值
静态 P=35MPa [N] |
重量 [g] |

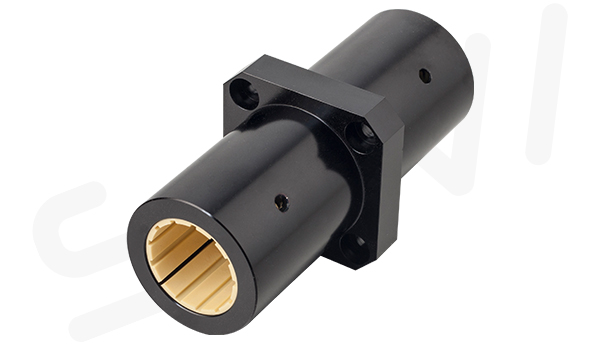

| LIN-02RTM-10 | 10 | 19 | +0.030 +0.083 | 1,300 | 9,100 | 44 |
| LIN-02RTM-12 | 12 | 22 | +0.030 +0.083 | 1,680 | 11,760 | 57 |
| LIN-02RTM-16 | 16 | 26 | +0.030 +0.083 | 2,400 | 16,800 | 79 |
| LIN-02RTM-20 | 20 | 32 | +0.030 +0.091 | 3,000 | 21,000 | 128 |
| LIN-02RTM-25 | 25 | 40 | +0.040 +0.091 | 5,000 | 35,000 | 249 |
| LIN-02RTM-30 | 30 | 47 | +0.040 +0.110 | 7,500 | 52,500 | 388 |
| LIN-02RTM-40 | 40 | 62 | +0.040 +0115 | 12,000 | 84,000 | 835 |
| LIN-02RTM-50 | 50 | 75 | +0.030 +0.130 | 17,500 | 122,500 | 1,352 |

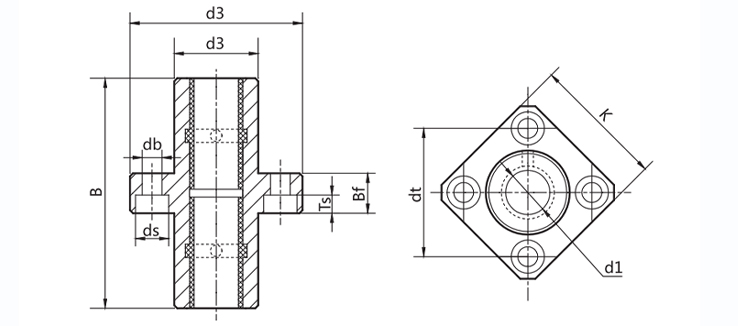

| 产品代码 | d1 | d2 h7 |
d3 | dt ±0.15 |
B | Bf | ts | db | ds | k |
| LIN-02RTM-10 | 10 | 19 | 39 | 29 | 52 | 9 | 4.1 | 4.5 | 7.5 | 30 |
| LIN-02RTM-12 | 12 | 22 | 42 | 32 | 57 | 9 | 4.1 | 4.5 | 7.5 | 32 |
| LIN-02RTM-16 | 16 | 26 | 46 | 36 | 70 | 9 | 4.1 | 4.5 | 7.5 | 35 |
| LIN-02RTM-20 | 20 | 32 | 54 | 43 | 80 | 11 | 5.1 | 5.5 | 9 | 42 |
| LIN-02RTM-25 | 25 | 40 | 62 | 51 | 112 | 11 | 5.1 | 5.5 | 9 | 50 |
| LIN-02RTM-30 | 30 | 47 | 76 | 62 | 123 | 14 | 6.1 | 6.6 | 11 | 60 |
| LIN-02RTM-40 | 40 | 62 | 98 | 80 | 151 | 18 | 8.1 | 9 | 14 | 75 |
| LIN-02RTM-50 | 50 | 75 | 112 | 94 | 192 | 18 | 8.1 | 9 | 14 | 88 |
