| 产品代码 | 轴 ∅ [mm] |
d1公差
轴承内径
直径 [mm] |
F最大值[N]
动态 P=5MPa 0° |
F最大值[N]
静态 P=35MPa 180° |
重量 [g] |
||||

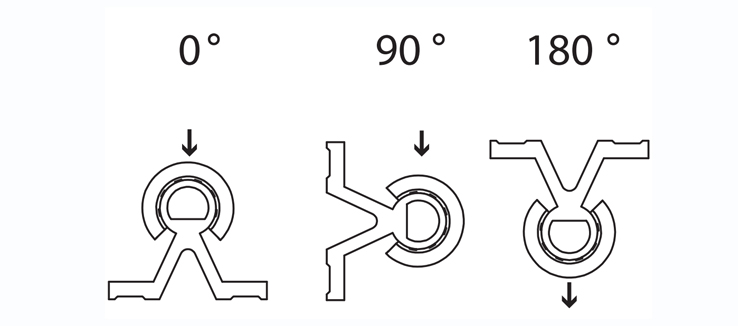

| 0° | 90° | 180° | 0° | 90° | 180° | ||||
| LIN-06RKL-12 | 12 | +0.030 +0.088 | 960 | 635 | 240 | 6,720 | 4,445 | 1,680 | 190 |
| LIN-06RKL-16 | 16 | +0.030 +0.088 | 1,440 | 990 | 396 | 10,080 | 6,943 | 2,772 | 300 |
| LIN-06RKL-20 | 20 | +0.030 +0.091 | 2,250 | 1,800 | 900 | 15,750 | 12,600 | 6,300 | 500 |
| LIN-06RKL-25 | 25 | +0.030 +0.091 | 3,625 | 2,953 | 1,523 | 25,375 | 20,670 | 10,658 | 1040 |
| LIN-06RKL-30 | 30 | +0.040 +0.110 | 5,100 | 4,250 | 2,278 | 35,700 | 29,735 | 15,946 | 1600 |

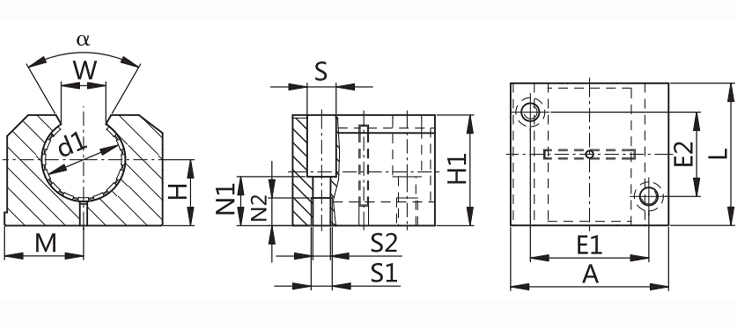

| 产品代码 | d1 | H +0.010 -0.014 | H1 | A | M | E1 ±0.15 | E2 ±0.15 | S | S1 | S2 | N1 | N2 | W -1 | α [o] | L |
| LIN-06RKL-12 | 12 | 18 | 28 | 43 | 21.5 | 32 | 62 | 8 | M5 | 4.3 | 16.5 | 11 | 10.2 | 78 | 78 |
| LIN-06RKL-16 | 16 | 22 | 35 | 53 | 26.5 | 40 | 68 | 10 | M6 | 5.3 | 21 | 13 | 11.6 | 78 | 85 |
| LIN-06RKL-20 | 20 | 25 | 42 | 60 | 30 | 45 | 74 | 11 | M8 | 6.6 | 24 | 18 | 12 | 60 | 96 |
| LIN-06RKL-25 | 25 | 30 | 51 | 78 | 39 | 60 | 103 | 15 | M10 | 8.4 | 29 | 22 | 14.5 | 60 | 130 |
| LIN-06RKL-30 | 30 | 35 | 60 | 87 | 43.5 | 68 | 106 | 15 | M10 | 8.4 | 34 | 22 | 16.6 | 57 | 140 |
