| 产品代码 | 轴 ∅ [mm] |
公差
轴承内圈
直径 [mm] |
F最大值[N]
动态 P=5MPa |
F最大值[N]
静态 P=35MPa |
重量 [g] |

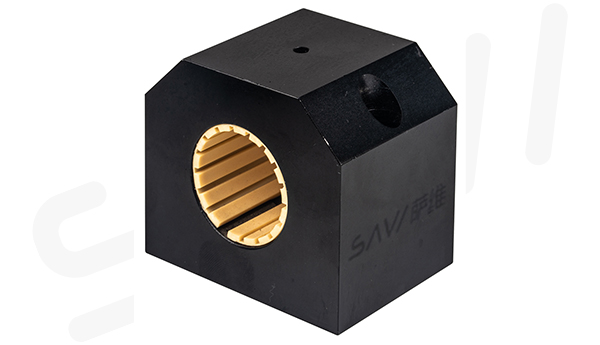

| LIN-05R-10 | 10 | +0.030 +0.088 | 650 | 4,550 | 71 |
| LIN-05R-12 | 12 | +0.030 +0.088 | 840 | 5,880 | 78 |
| LIN-05R-16 | 16 | +0.030 +0.088 | 1,200 | 8,400 | 106 |
| LIN-05R-20 | 20 | +0.030 +0.091 | 1,500 | 10,500 | 132 |
| LIN-05R-25 | 25 | +0.030 +0.091 | 2,500 | 17,500 | 253 |
| LIN-05R-30 | 30 | +0.040 +0.110 | 3,750 | 26,250 | 374 |
| LIN-05R-40 | 40 | +0.040 +0.115 | 6,000 | 42,000 | 713 |
| LIN-05R-50 | 50 | +0.050 +0.130 | 8,750 | 61,250 | 1,168 |

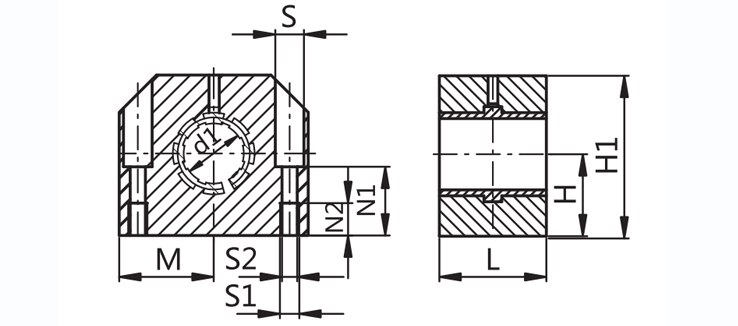

| 产品代码 | d1 | H +0.01 -0.014 | H1 | A | M | E ±0.15 | S | S1 | S2 | N1 | N2 | L |
| LIN-05R-10 | 10 | 16 | 33 | 40 | 20 | 29 | 8 | M 5 | 4.3 | 16 | 11 | 26 |
| LIN-05R-12 | 12 | 17 | 33 | 40 | 20 | 29 | 8 | M 5 | 4.3 | 16 | 11 | 28 |
| LIN-05R-16 | 16 | 19 | 38 | 45 | 22.5 | 34 | 8 | M 5 | 4.3 | 18 | 11 | 30 |
| LIN-05R-20 | 20 | 23 | 45 | 53 | 26.5 | 40 | 9.5 | M 6 | 5.3 | 22 | 13 | 30 |
| LIN-05R-25 | 25 | 27 | 54 | 62 | 31 | 48 | 11 | M 8 | 6.6 | 26 | 18 | 40 |
| LIN-05R-30 | 30 | 30 | 60 | 67 | 33.5 | 53 | 11 | M 8 | 6.6 | 29 | 18 | 50 |
| LIN-05R-40 | 40 | 39 | 76 | 87 | 43.5 | 69 | 15 | M 10 | 8.4 | 38 | 22 | 60 |
| LIN-05R-50 | 50 | 47 | 92 | 103 | 51.5 | 82 | 18 | M 12 | 10.5 | 46 | 26 | 70 |
