| 产品代码 | 轴 ∅ [mm] |
基座孔 ∅ H7 [mm] |
公差
轴承内圈
直径 [mm] |
F最大值[N]
动态 P=5MPa |
F最大值[N]
静态 P=35MPa |
重量 [g] |
||||

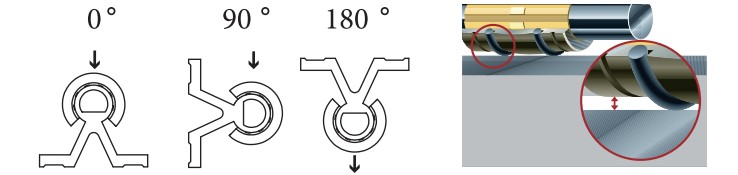

| 0° | 90° | 180° | 0° | 90° | 180° | |||||
| LIN-03RK-10 | 10 | 19 | +0.030 +0.088 | 725 | 500 | 196 | 5,075 | 3,500 | 1,370 | 10 |
| LIN-03RK-12 | 12 | 22 | +0.030 +0.088 | 960 | 635 | 240 | 6,720 | 4,445 | 1,680 | 13 |
| LIN-03RK-16 | 16 | 26 | +0.030 +0.088 | 1,440 | 990 | 396 | 10,080 | 6,943 | 2,772 | 19 |
| LIN-03RK-20 | 20 | 32 | +0.030 +0.091 | 2,250 | 1,800 | 900 | 15,750 | 12,600 | 6,300 | 38 |
| LIN-03RK-25 | 25 | 40 | +0.030 +0.091 | 3,625 | 2,953 | 1,523 | 25,375 | 20,670 | 10,658 | 63 |
| LIN-03RK-30 | 30 | 47 | +0.040 +0.110 | 5,100 | 4,250 | 2,278 | 35,700 | 29,735 | 15,946 | 119 |
| LIN-03RK-40 | 40 | 62 | +0.040 +0.115 | 8,000 | 6,810 | 3,800 | 56,000 | 47,660 | 26,600 | 250 |
| LIN-03RK-50 | 50 | 75 | +0.050 +0.130 | 12,500 | 10,750 | 6,125 | 87,500 | 75,265 | 42,875 | 431 |
| 产品代码 | d1 | d2 h7 |
ds H10 |
e | o +0.1 |
do | B1 h10 |
s h10 |
B h10 |
R | W -1 |
a +0.1 |
f ±0.2 |
h -0.5 |
| LIN-03RK-10 | 10 | 18.8 | 18.5 | 5 | 1.86 | 15.4 | 21.8 | 1.3 | 28.9 | 13 | 7.3 | 0 | 0 | 1.2 |
| LIN-03RK-12 | 12 | 21.8 | 21.5 | 6 | 1.86 | 18.4 | 22.8 | 1.3 | 31.9 | 18 | 9 | 3 | 1.33(7°) | 1.2 |
| LIN-03RK-16 | 16 | 25.8 | 25.5 | 8 | 2.86 | 20.4 | 24.9 | 1.3 | 35.9 | 32 | 11.6 | 2.2 | 0 | 1.2 |
| LIN-03RK-20 | 20 | 31.8 | 31.5 | 10 | 2.86 | 26.4 | 31.5 | 1.6 | 44.8 | 50 | 12 | 2.2 | 0 | 1.2 |
| LIN-03RK-25 | 25 | 39.8 | 39 | 12.5 | 2.86 | 34.4 | 44.1 | 1.85 | 57.8 | 39 | 14.5 | 3 | -1.5(-4.3°) | 1.5 |
| LIN-03RK-30 | 30 | 46.7 | 46 | 15 | 2.86 | 41.4 | 52.1 | 1.85 | 67.8 | 57 | 16.6 | 3 | 2(4.9°) | 2 |
| LIN-03RK-40 | 40 | 61.7 | 61 | 20 | 2.86 | 56.4 | 60.9 | 2.15 | 79.8 | 100 | 21 | 3 | 1.5(2.8°) | 2 |
| LIN-03RK-50 | 50 | 74.7 | 74 | 25 | 2.86 | 69.4 | 78 | 2.65 | 99.8 | 157 | 25.5 | 5 | 2.5(3.8°) | 2 |
