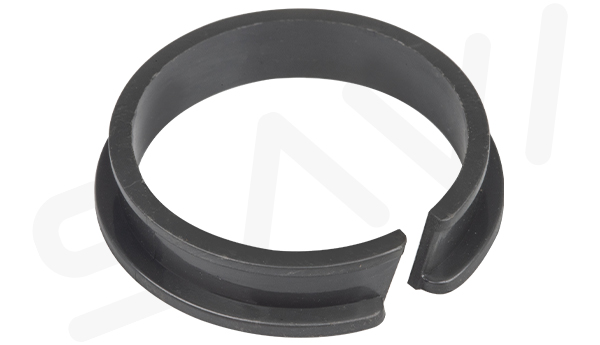

| 订购代码 | d1 mm |
公差 mm |
d2 mm |
d3 mm |
d4 mm |
s -0.10 mm |
b1 -0.20 mm |
| MCB-03-02 | 3 | +0.020/+0.080 | 4.2 | 4.8 | 6 | 0.6 | 3.2 |
| MCB-04-02 | 4 | +0.030/+0.105 | 5.2 | 5.9 | 7 | 0.6 | 3.2 |
| MCB-05-02 | 5 | +0.030/+0.105 | 6.2 | 6.8 | 8 | 0.6 | 3.2 |
| MCB-05-03 | 5 | +0.030/+0.105 | 6.2 | 6.8 | 8 | 0.6 | 4.2 |
| MCB-06-02 | 6 | +0.030/+0.105 | 7.2 | 7.8 | 11 | 0.6 | 3.2 |
| MCB-06-03 | 6 | +0.030/+0.105 | 7.2 | 7.8 | 11 | 0.6 | 4.2 |
| MCB-08-02 | 8 | +0.040/+0.130 | 9.6 | 10.4 | 13 | 0.8 | 3.6 |
| MCB-08-03 | 8 | +0.040/+0.130 | 9.6 | 10.4 | 13 | 0.8 | 4.6 |
| MCB-10-014 | 10 | +0.040/+0.130 | 11.6 | 12.4 | 15 | 0.8 | 3 |
| MCB-10-02 | 10 | +0.040/+0.130 | 11.6 | 12.4 | 15 | 0.8 | 3.6 |
| MCB-10-025 | 10 | +0.040/+0.130 | 11.6 | 12.4 | 15 | 0.8 | 4.1 |
| MCB-10-03 | 10 | +0.040/+0.130 | 11.6 | 12.4 | 15 | 0.8 | 4.6 |
| MCB-12-02 | 12 | +0.050/+0.160 | 13.6 | 14.4 | 17 | 0.8 | 3.6 |
| MCB-12-025 | 12 | +0.050/+0.160 | 13.6 | 14.4 | 17 | 0.8 | 4.1 |
| MCB-12-03 | 12 | +0.050/+0.160 | 13.6 | 14.4 | 17 | 0.8 | 4.6 |
| MCB-14-03 | 14 | +0.050/+0.160 | 15.6 | 16.4 | 19 | 0.8 | 4.6 |
| MCB-16-02 | 16 | +0.050/+0.160 | 17.6 | 18.4 | 21 | 0.8 | 3.6 |
| MCB-16-03 | 16 | +0.050/+0.160 | 17.6 | 18.4 | 21 | 0.8 | 4.6 |
| MCB-18-03 | 18 | +0.050/+0.160 | 20 | 21 | 23 | 1 | 5 |
| MCB-20-03 | 20 | +0.065/+0.195 | 22 | 23 | 25 | 1 | 5 |
| MCB-25-03 | 25 | +0.065/+0.195 | 27 | 28 | 30 | 1 | 5 |
