| 产品代码 | d1公差 [mm] |
Fmax.静态或动态 [N] |
重量 [g] |
| LIN-06R-12 LL | +0.030 +0.088 | 560 | 50 |
| LIN-06R-16 LL | +0.030 +0.088 | 920 | 80 |
| LIN-06R-20 LL | +0.030 +0.091 | 2,100 | 130 |
| LIN-06R-25 LL | +0.030 +0.091 | 3,550 | 280 |
| LIN-06R-30 LL | +0.040 +0.110 | 5,300 | 430 |
| LIN-06R-40 LL | +0.040 +0.115 | 8,000 | 850 |
| LIN-06R-50 LL | +0.050 +0.150 | 12,500 | 1,500 |

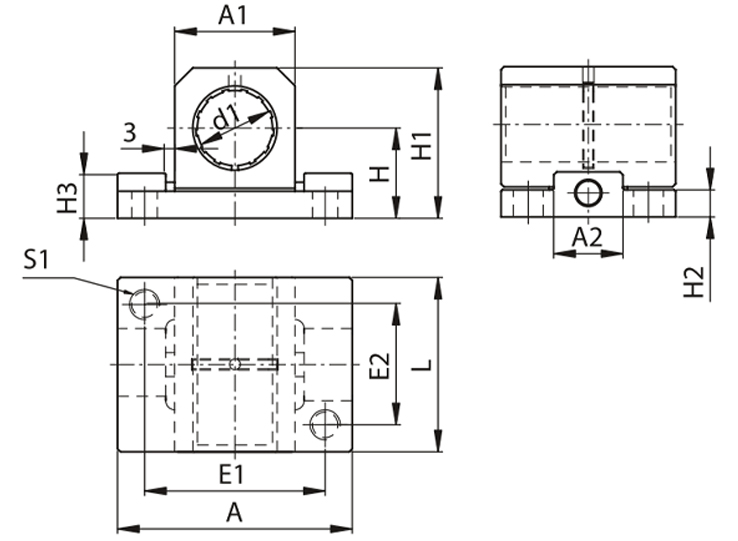

| 产品代码 | d1 | H ±0.01 | H1 | A | E1 ±0.15 | E2 ±0.15 | S1 | L | A1 | A2 | H2 | H3 |
| LIN-06R-12 LL | 12 | 18 | 28 | 43 | 32 | 23 | M5 | 32 | 20 | 13 | 6 | 11 |
| LIN-06R-16 LL | 16 | 22 | 35 | 53 | 40 | 26 | M6 | 36 | 26 | 15 | 7 | 11 |
| LIN-06R-20 LL | 20 | 25 | 41 | 60 | 45 | 32 | M8 | 45 | 32 | 19 | 7 | 12.5 |
| LIN-06R-25 LL | 25 | 30 | 50 | 78 | 60 | 40 | M10 | 58 | 40 | 23 | 9 | 15 |
| LIN-06R-30 LL | 30 | 35 | 59 | 87 | 68 | 45 | M10 | 68 | 48 | 28 | 10 | 15 |
| LIN-06R-40 LL | 40 | 45 | 76 | 108 | 86 | 58 | M12 | 80 | 62 | 80 | 20 | 20 |
| LIN-06R-50 LL | 50 | 50 | 89 | 132 | 108 | 50 | M16 | 100 | 78 | 100 | 24 | 24 |
